Difference Between VMC and HMC?
In the world of precision machining, selecting the right type of machining center is crucial for achieving the desired results efficiently. Two of the most common types of CNC (Computer Numerical Control) machining centers are Vertical Machining Centers (VMCs) and Horizontal Machining Centers (HMCs). Both types are essential in modern manufacturing, but they serve different purposes and have distinct advantages and disadvantages. In this blog, we will explore the differences between VMCs and HMCs, helping you understand their unique features, applications, and how to choose the right one for your needs.
Understanding Vertical Machining Centers (VMCs)
Vertical Machining Centers (VMCs) are CNC machines where the spindle axis is vertically oriented. They are widely used for milling operations and can also perform drilling, tapping, and boring tasks. VMCs are known for their versatility, precision, and ease of use.
Key Features of VMCs:
Vertical Spindle Orientation: The spindle is positioned vertically, allowing for efficient chip removal and improved visibility of the machining process.
Movable Worktable: The worktable moves along the X and Y axes, while the spindle moves along the Z axis, enabling three-dimensional machining.
Versatile Operations: VMCs can handle various machining tasks, including milling, drilling, tapping, and boring.
Compact Design: VMCs typically have a smaller footprint compared to HMCs, making them suitable for workshops with limited space.
Automatic Tool Changer: Many VMCs are equipped with automatic tool changers, allowing for quick and efficient tool changes during the machining process.
Advantages of VMCs:
Ease of Use: VMCs are user-friendly and easier to set up and operate compared to HMCs.
Cost-Effective: Generally, VMCs are more affordable than HMCs, both in terms of initial investment and maintenance.
Flexibility: They are ideal for a variety of applications, from simple to complex parts, and are commonly used in industries such as automotive, aerospace, and electronics.
Disadvantages of VMCs:
Limited Workpiece Size: VMCs have limitations on the size and weight of the workpiece they can handle.
Reduced Production Efficiency: For large-volume production runs, VMCs may be less efficient compared to HMCs due to longer setup times and tool changes.
Understanding Horizontal Machining Centers (HMCs)
Horizontal Machining Centers (HMCs) are CNC machines where the spindle axis is horizontally oriented. HMCs are known for their ability to handle larger and heavier workpieces and are often used for high-volume production runs.
Key Features of HMCs:
Horizontal Spindle Orientation: The spindle is positioned horizontally, which allows for more efficient chip evacuation and better access to the workpiece.
Rotary Table: HMCs typically feature a rotary table that can rotate the workpiece, allowing for machining on multiple sides without repositioning.
High Rigidity: HMCs are designed for high rigidity and stability, making them suitable for heavy-duty machining operations.
Pallet Changer: Many HMCs come with a pallet changer, enabling continuous operation by allowing one pallet to be machined while another is being set up.
High Production Efficiency: HMCs are ideal for high-volume production runs due to their ability to handle multiple operations with minimal downtime.
Advantages of HMCs:
Increased Productivity: HMCs offer higher production efficiency, making them ideal for large-scale manufacturing.
Better Chip Evacuation: The horizontal orientation allows for more efficient chip evacuation, reducing heat buildup and improving tool life.
Machining Flexibility: HMCs can machine multiple sides of a workpiece in a single setup, reducing the need for multiple fixtures and setups.
Disadvantages of HMCs:
Higher Cost: HMCs are generally more expensive than VMCs, both in terms of initial investment and maintenance.
Complex Setup: The setup and operation of HMCs can be more complex, requiring skilled operators and more time to configure.

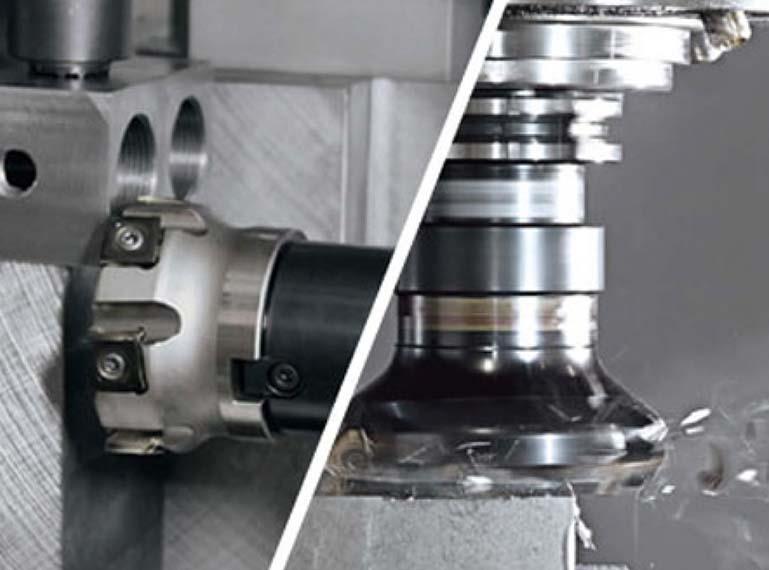

Key Differences Between VMCs and HMCs
1. Spindle Orientation:
VMCs: Vertical spindle orientation, suitable for top-down machining.
HMCs: Horizontal spindle orientation, ideal for side machining and better chip evacuation.
2. Workpiece Handling:
VMCs: Better suited for smaller to medium-sized workpieces.
HMCs: Capable of handling larger and heavier workpieces due to their robust design.
3. Production Efficiency:
VMCs: More suitable for smaller production runs and prototypes.
HMCs: Ideal for high-volume production due to their ability to perform multiple operations with minimal downtime.
4. Cost:
VMCs: Generally more affordable, with lower initial investment and maintenance costs.
HMCs: Higher initial cost but offer better long-term efficiency for large-scale production.
5. Setup and Operation:
VMCs: Easier to set up and operate, making them suitable for workshops with less specialized staff.
HMCs: Require more complex setup and skilled operators, but offer greater efficiency and flexibility for complex machining tasks.
Conclusion: Which is Better?
Choosing between a VMC and an HMC depends on your specific manufacturing needs. If your operations involve smaller production runs, require versatility, and have budget constraints, a VMC may be the better choice. On the other hand, if you are looking for high production efficiency, need to handle larger workpieces, and have the budget for a higher initial investment, an HMC is the better option.
Both VMCs and HMCs play vital roles in modern manufacturing, and understanding their differences can help you make an informed decision to optimize your production processes.
